Kirjeldus

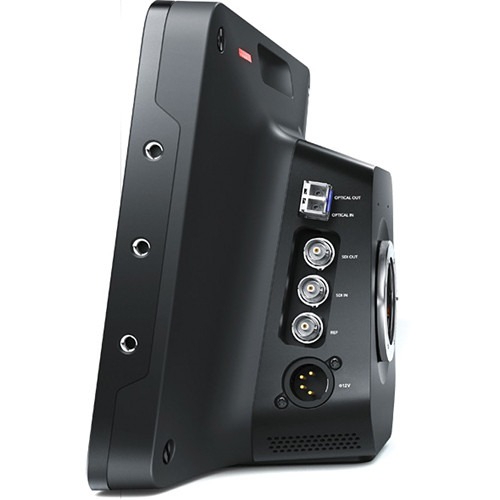

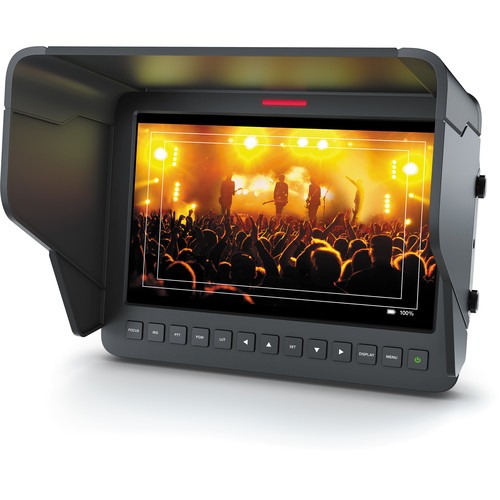

The Blackmagic Design Studio Camera HD 2 is an updated compact and lightweight broadcast camera designed for live production. This is version 2, which removes the internal battery, making for a studio camera that is both lighter and simpler to ship to locations without running afoul of airline shipping restrictions. Constructed from a magnesium alloy body, the camera is light even for travel, yet durable enough for use in the field. It has a large 10″ LCD screen with detachable sunshade and an active Micro Four Thirds lens mount for compatibility with a wide range of lenses. The camera also provides features you’d expect to find in larger studio cameras, such as tally indicators, talkback, XLR audio connections, 3G-SDI inputs/outputs, and even optical fiber via an optional module.
The camera offers 1080i and 1080p resolutions at frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60, as well as 720p at 60, 59.94, and 50. It outputs 10-bit 4:2:2 video via its 3G-SDI output. For power, the camera has a standard 4-pin XLR power input for external power sources. The camera control buttons have been placed right below the viewfinder, letting you easily make adjustments without taking your eyes off your subject. The camera can also be controlled via ATEM switchers with a future update. The update will be available as a free download for both the camera and the ATEM switchers, and will send camera control commands down the SDI program feed to the camera to control focus, iris, gain, and more straight from your ATEM production switcher.
Blackmagic Design Studio Camera HD 2 Specs
| Sensor Size | 12.48mm x 7.02mm |
| Lens Mount | Micro Four Thirds (active), with auto iris control button |
| Shutter Speed | 1/50 to 1/2000 second |
| White Balance | Six presets: 3200K, 4500K, 5000K, 5600K, 6500K, and 7500K |
| Resolution | 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 50/59.94/60 1280 x 720p: 50/59.94/60 |
| Type | Integrated TFT-LCD |
| Size | 10.1″ (25.7 cm) |
| Resolution | 1920 x 1200 |
| SDI Video Output | 1 x 3G-SDI, 10-bit 4:2:2 |
| SDI Video Input | 1 x 3G-SDI |
| Reference Input | 1 x Reference input |
| Optical Fiber Compatibility | 3G Optical Fiber input and output (via optional optical fiber module) |
| Analog Audio Input | 2 x XLR analog, switchable between mic and line levels; Phantom power support |
| Analog Audio Output | Aviation headphone (Fixed Wing Plugs) output for talkback and audio monitoring |
| SDI Audio Output | 2 channels in 3G-SDI 48 KHz and 24-bit 2 channels for talkback on channel 15-16 |
| Remote Control | 1 x 2.5 mm LANC for iris and focus control SDI CCU control from ATEM |
| USB | 1 x USB 2.0 Mini-B port for software updates |
| Microphone | Integrated stereo microphone |
| Mounting Options | 2 x 3/8″ tripod mount 10 x 1/4″-20 threaded holes (4 on top of the camera, 3 on left, 3 on right) |
| Controls | Push button controls for navigating menus |
| Operating Systems Supported | Mac OS X 10.8 Mountain Lion or later Windows 7 or later |
| Power Requirements | 11 to 30 VDC |
| External Power Input | 1 x 4-pin XLR |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Relative Humidity | 0 to 90%, non-condensing |
| Dimensions (W x H x D) | 10.05 x 7.66 x 4.47″ / 25.53 x 19.46 x 11.35 cm |
| Package Weight | 6.695 lb |
| Box Dimensions (LxWxH) | 12.05 x 10.15 x 8.4″ |
Lisainfo
| Weight | 3 kg |
|---|---|
| Brand | Blackmagic Design |
| Country | UK |
