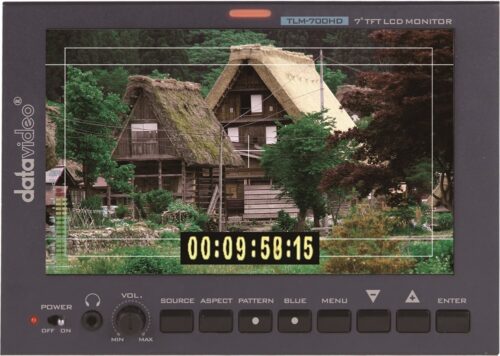

Datavideo TLM-700HD High res. 7″, 16:9 LCD/TFT monitor

Datavideo TLM-700HD High res. 7″, 16:9 LCD/TFT monitor

615,00

Datavideo TLM-700HD High res. 7″, 16:9 LCD/TFT monitor. 4:3 ratio compatible. Panel resolution: 800x480Pixels. HD/ SD-SDI, (HD-)YUV, CV and HDMI input. Standard V-mount enabling powering up with universal battery for in the field use. Audio indicator for SDI & HDMI .

Saadavus: Saadaval järeltellimisel Tootekood: 672255001912 Kategooria:
Võrdle
  • Kirjeldus
  • Lisainfo

Kirjeldus



HD/SD TFT LCD Monitor




7” HD desktop monitor



Supports HD/SD 800×480 panel resolution.

Supports multiple input configurations



1 x HD/SD-SDI, 1 x HDMI, 1 x HD/SD-YUV, 1 x CV input

Various built-in functions



Blue Only, Safe Frame, SDI Time Code Display, Audio Level Indicator, Safe Frame, Image Flip, Tally Light



Excellent portability



Battery power supply and rugged metal design makes TLM-700HD a perfect choice for user who work outdoors in the field.



Specifications


TLM-700HD 7” HD/SD TFT LCD Monitor
Screen

7″ LED Backlit

Chassis

Camera Mount

Resolution

800×480

Viewing Angle

(H) +70/-70°
(V) +50/-70°

Luminance/Contrast

300cd/m²
500:1

Video Inputs

1x HD/SD-SDI
1x HD/SD-YUV
1x HDMI
1x Composite Video

Supported Input Resolutions

1080i(50/60Hz)
720p(50/60 Hz)
480i(NTSC), 576i(PAL)

Aspect Ratio

16:9, 15:9, 4:3

Tally LED

Live (Red)
Cued (Amber)

Audio In/Out

Embedded Audio on SDI and HDMI
Audio Level Indicator,
1x Stereo Headphone Jack

Special Features

Blue Only, Safe Frame, SDI Time Code
Display, Audio Level Indicator, Safe Frame,
Image Flip, Can powered by batteries (Not Included)

Dimension (LxWxH)

186 x 132 x 51 mm

Weight

1.1 kg

Operating Temp. Range

0~40 °C

Power

DC 12V, 8W

What’s in the Box

1 x TLM-700HD product
1 x Sunshield
1 x Switching Adaptor DC 12V / 1A

Lisainfo

Weight 1,65 kg
Brand

Datavideo
