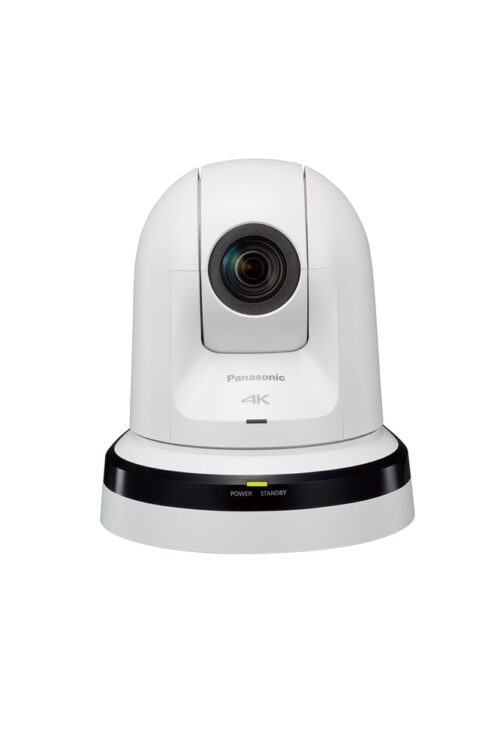

Panasonic AW-UE70KEJ 4K / HD PTZ integrated Camera

Panasonic AW-UE70KEJ 4K / HD PTZ integrated Camera

4 850,00

Panasonic AW-UE70KEJ 4K / HD PTZ integrated Camera

Saadavus: Saadaval järeltellimisel Tootekood: 5025232832750 Kategooria:
  • Kirjeldus
  • Lisainfo


Panasonic AW-UE70KEJ 4K / HD PTZ integrated Camera
• 1/2.3-type MOS sensor
• 20 x Optical Zoom, extendable by iA zoom (22x in 4K / 30x in HD)
• Optical Image Stabilization (OIS) that compensates vibration from audio speakers and closing doors
• High Dynamic Range function (HDR), suitable for backlit condition
• 4K video via HDMI, USB and LAN (UHD: 3840 x 2160 @25p)
• HD video via 3G-SDI (up to 1080/50p)
• External synchronization input, supporting both BB and Tri-level
• Supports PoE++ for lower installation costs
• 4K or Full HD streaming is supported, at different bit-rates up to 50Mbps
• Up to four channels of IP streaming in HD (H.264 encoding)
• Audio input for mic/line (stereo mini jack), with equalizer function
• IP control with image monitoring using PC, Mac and mobile terminals
• Video and audio can be recorded on an inserted microSD card
• ND filter (Auto, Thru, 1/4, 1/16, 1/64)
• Night Mode makes shooting possible under IR light (supports automatic switching)
• Supports USB Video/Audio Class, so the camera can be used as high-quality webcam
• Equipped with RS422 and RS232C (in/out) remote terminals
• Camera control from iPad when it is used with optional Control Assist Camera AW-HEA10
3 Years European Warranty

Power Requirements DC 12 V (Supplied AC adaptor)
DC 42 V to 57 V (PoE+ power supply)
Current Consumption 1.3 A (Supplied AC adaptor)
0.5 A (PoE+ power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature –20 °C to 50 °C (–4 °F to 122 °F)
Allowable Humidity Ranges 20 % to 90 % (no condensation)
Mass Approx. 1.5 kg (3.30 lb)
Dimensions (W x H x D) 160 mm x 186 mm x 179 mm
(6-5/16 inches x 7-41/128 inches x 7-3/64 inches) [excluding protrusions, direct ceiling mount bracket]

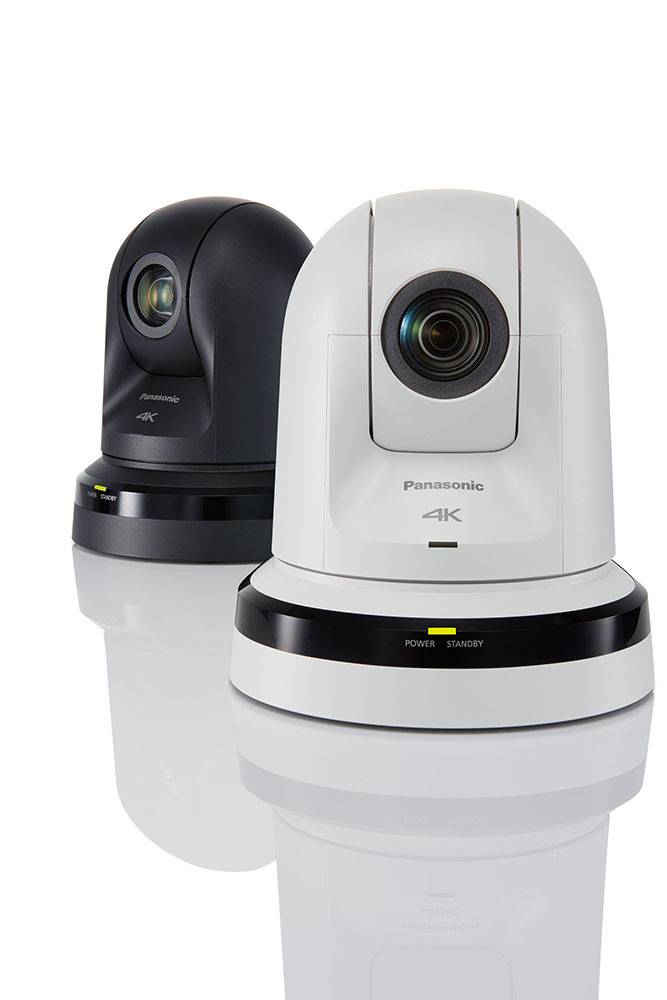

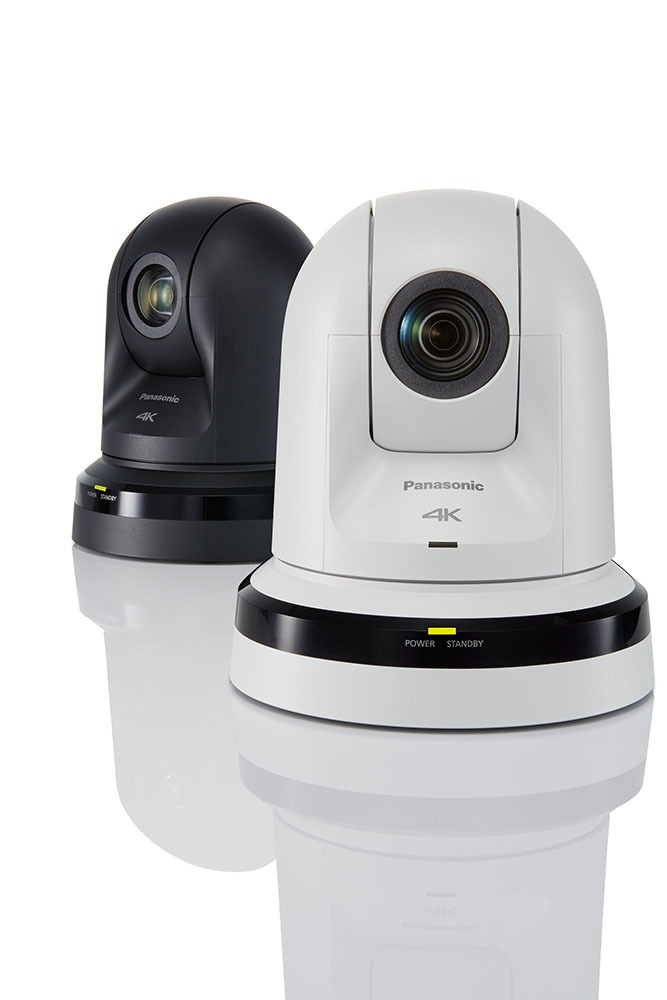

Finish [AW-UE70W] Pearl white [AW-UE70K ] Metallic black
Controller Supported* AW-RP50, AW-RP120G, AK-HRP200G
Imaging Sensors 1/2.3-type MOS
Lens Motorized 20x zoom, F1.8 to F3.6
[f=4.08 mm (5/32 inches) to 81.6 mm (3-7/32 inches); 35 mm (1-3/8 inches)equivalent: 29.5 mm (1-5/32 inches) to 612.0 mm (24-3/32 inches)]
Focus Switching between auto and manual
Focus Distance Entire zooming range:1.5 m (4.92 ft) Wide end: 10 cm (0.33 ft)
Color Separation Optical System On-chip color filter system
Minimum Illumination 59.94 Hz:
0.7 lx (50 IRE, F1.8, 48 dB,1/60 without accumulation)
0.35 lx (50 IRE, F1.8, 48 dB,1/30 with accumulation [Frame Mix 6 dB])
Horizontal Resolution 4K : 1300 TV lines Typ (Center area) HD: 1000 TV lines Typ (Center area)
Gain Selection Auto, 0 dB to 48 dB (3 dB step)
Frame Mix*3 Auto, Off, 6 dB, 12 dB, 18 dB, 24 dB
ND Filter Auto 4, Through, 1/4, 4/16, 1/64
Electronic Shutter Speed During Full Auto:
1/60 to 1/2000 (Auto Slow Shutter: Off)[59.94 Hz] 1/30 to 1/2000 (Auto Slow Shutter: On)[59.94 Hz] 1/50 to 1/2000 (Auto Slow Shutter: Off)[50 Hz] 1/25 to 1/2000 (Auto Slow Shutter: On)[50 Hz] During Auto:
1/60 to 1/2000 [59.94 Hz] 1/50 to 1/2000 [50 Hz] During Manua:
1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [59.94 Hz] 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [50 Hz]
Synchro Scan 59.94 Hz:
59.94 Hz to 660.09 Hz (255 step)
Gamma Off, Normal (Low, Mid, High), Cinema
White Balance ATW, AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K)
Scene File Full Auto, Manual1, Manual2, Manual3
Synchronization System Internal synchronization/External synchronization (BBS, Tri-level sync)
Image Stabilization Optical (FHD, 4K)/4-axis hybrid image stabilizer
(FHD) for stable
Power DC 12 V IN, PoE+ (IEEE802.3at standard)
MIC/Line Input Stereo mini-jack (?3.5 mm)
Input impedance: Approx. 2 k
G/L In Compatible with BBS (Black Burst Sync) signals and ternary synchronizing signals (BNC x 1)
Video Output HDMI connector
? HDCP is not supported.
? VIERA Link is not supported.
Compliant with the SMPTE424/SMPTE292M standards/75
Input/Output Connector LAN: LAN connector for IP control (RJ-45) Equipped with straight/crossover cable auto detection function
RS-232C: Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT)
RS-422: CONTROL IN RS422A (RJ-45)
USB: Mini-B port
SD Card: microSD card slot
Video Output (USB) USB Video Class Ver1.0
Video Compression Format Motion JPEG
Resolution 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
Frame Rate max 30 fps (59.94 Hz)
max 25 fps (50 Hz)
Audio Output USB Audio Class Ver1.0
Audio Compression Format Linear PCM, 48 kHz, 16-bit, 2 channels
Transfer Modes (JPEG) 3840 x 2160
59.94 Hz: 5fps, 50 Hz: 5fps
Supported Models Devices standardly equipped with a USB 2.0 compatible port
Installation Method Stand-alone (Desktop) or suspended (Hanging) 5
Pan/Tilt Operation Speed Maximum speed during preset: 300
Tilting Range*5 –30° to 90°*6
Quietness During preset: NC40 or less During manual: NC35 or less
IP Connecting Cable • When connecting through a PoE+ hub:
LAN cable*7 (category 5e or above), max. 100 m (328 ft)
• When a PoE+ hub is not used:
LAN cable*7 (category 5 or above) max.100 m (328 ft)
AW Protocol Connecting Cable LAN cable (category 5 or above,straight cable), max. 1000 m (3280 ft)
Standard Protocol Connecting Cable Mini DIN 8-pin cable, male
SD Card Recording MPEG-4 AVC file standard compliant (.MP4)
Video Compression Format (SD) MPEG-4 AVC/H.264 High Profile
Audio Compression Format (SD) AAC-LC (48 kHz, 16 bit, 2 ch, 128 kbps)
Recording Format/Bit Rate 59.94 Hz:
3840 x 2160/29.97p (Up to 72 Mbps),
1920 x 1080/59.94p (Up to 28 Mbps), 1920 x 1080/29.97p (Average 15 Mbps/Average 10 Mbps/Average 6 Mbps),
1280 x 720/59.94p (Average 15 Mbps),
1280 x 720/29.97p (Average 8 Mbps/Average 4 Mbps/Average 2 Mbps)
Transfer Modes JPEG:
1920 x 1080, 1280 x 720, 640 x 360, 320 x 180, 59.94 Hz (30fps/15fps/5fps)*8, 50 Hz (25fps/12.5fps/5fps)*8
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180, 59.94 Hz (60fps*9/30fps/15fps/5fps)*8, 50 Hz (50fps*9/25fps/12.5fps/5fps)*8
Supported Protocol Pv4:
iOS, Android Support JPEG image display
