Professional Robotic Pan/Tilt head

Professional Robotic Pan/Tilt head

1 925,00

Professional Pan/Tilt head for any camera up to 4kg Providing HDMI/SDI connectivity Controlled by Datavideo’s DVIP, VISCA or IR Pan: 340 °/Tilt ± 45° 50 Presets can be stored

Saadavus: Saadaval järeltellimisel Tootekood: 672255008638 Kategooria:
Võrdle
  • Kirjeldus
  • Lisainfo

Kirjeldus

Robotic Pan Tilt Head




Turn camcorder into PTZ

Control of Pan, Tilt, Zoom. Supports Zoom control of Datavideo block cameras and various brand lens.

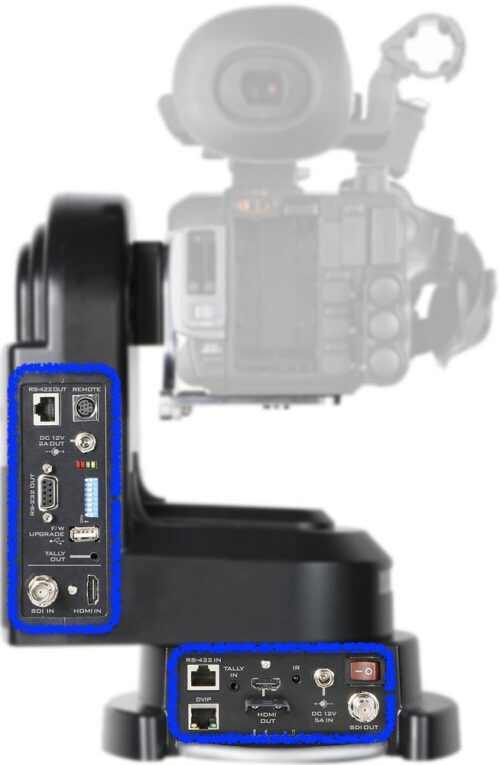

Multiple signal interface

PTR-10 supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, DVIP, Tally, and LANC.

Diversified controller options



Controlling the PTR-10 is very easy. You can use our two hardware remote control panels, RMC-180 and RMC-300C with Control of Pan and tilt, and if your camera supports it you can also zoom with these remote controls. PTR-10 also supports DVIP, so controlling using an IP interface is also very easy with the available API.

Light Weight, Strong, and sturdy design

With a weight of 3.4 kg, PTR-10 is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.

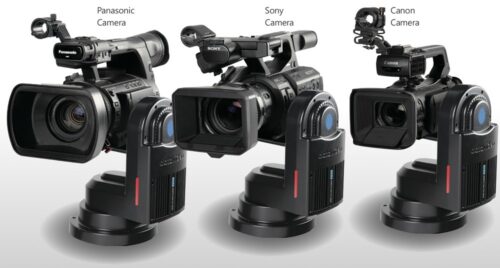

Wide Range of Compatible Cameras Supported



The PTR-10 implements LanC control that is compatible with a wide range of professional video camcorders, allowing you to select the best camcorders for your needs.

Cost-Effective

Marketed at competitive price point, PTR-10 makes it very affordable to upgrade your studio existing cameras for multi-camera remote productions.

Built-in Tally light

With the big tally light in the front to show the status of your camera.



Specifications


PTR-10 Robotic Pan Tilt Head
Video Interface

HDMI x 1
SDI x 1

Video Output

2160p 29.97/25 (Via HDMI Only)
1080p 59.94/50
1080i 59.94/50
720p 59.94/50

Control Unit

RMC-180
RMC-300C
VISCA Protocol Controller
IP Control
IR remote

Panning / Tilting Range

Pan: 340°
Tilt: ±45°

Panning / Tilting Speed

Pan: 0.2~15° /Sec
Tilt: 0.1~10° /Sec

Preset

Pan/Tilt position 50

Control Distance

1,200M by RS422
100M by DVIP

Control Protocol

Sony VISCA
DVIP

Control Input

RS-422
DVIP

Maximum Load

4 KG Max

Control Output

RS-232
RS-422
BX-Lens
LanC

Power Requirement

DC 12V~ 18V, 3A (Without Camera)
DC 12V~ 18V, 5A (With Camera)

Power Supply

DC 12V, 24W Max

Operating Temp. Range

0~40 C°

Operating Humidity Range

10~80%

Storage Temp. Range

-10~60 C°

Storage Humidity Range

5~80%

Weight

3.4 kg

Dimension (LxWxH)

230 x 190 x 300 mm

What’s in the Box
Content
  • 1x LANC Cable
  • 1x HDMI Cable
  • 1x BNC Cable
  • 1x Power Supply with Cords
  • Remote Controller

Lisainfo

Brand

Datavideo
