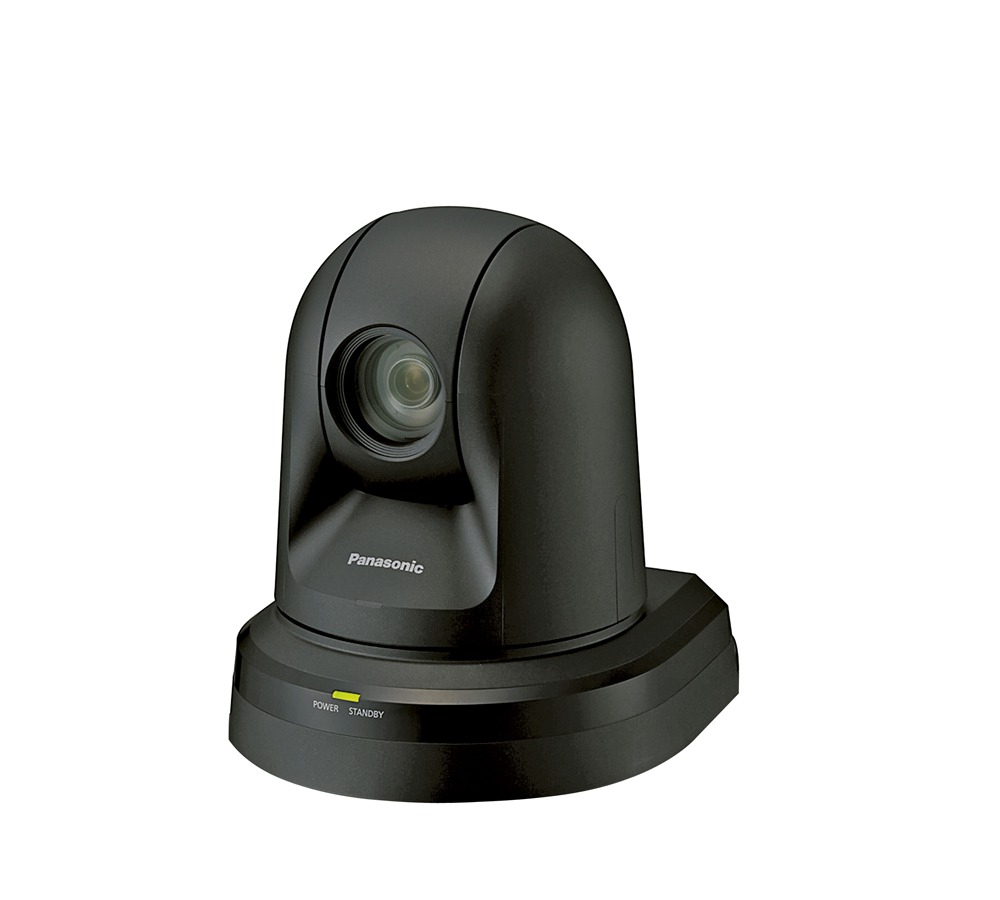

Panasonic AW-HN40HKEJ HD Integrated Camera (HDMI) MOS 1/3.2 with NDI
2 990,00 €
Panasonic AW-HN40HKEJ HD Integrated Camera (HDMI) MOS 1/3.2 with NDI
- Kirjeldus
Kirjeldus
Panasonic AW-HN40HKEJ HD Integrated Camera (HDMI) MOS 1/3.2 with NDI
• 1/2.3 type MOS
• 30 x Optical Zoom (10 x Digital Zoom + Digital Extender)
• Night Mode (IR Light needed)
• Audio Input – 3,5mm stereo mini jack (Line or Mic)
• IP control with image monitorig output
• RS422, RS232C In/Out
• IP Connection (RJ45)
• Pearl White (W)
• PoE+ Support
• H264 HD-IP streaming
• Internal SD card recording and playback
• USB video class output (1920×1080), backup camera settings AW-RP120 / AK-HRP200
| Dimensions (W x H x D) | 160 mm x 186 mm x 166 mm (6-5/16 inches x 7-41/128 inches x 6-17/32 inches) [excluding protrusions, direct ceiling mount bracket] |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
| Current Consumption | 1.2 A (Supplied AC adaptor) 0.4 A (PoE+ power supply) |
| Power Requirements | DC 12 V (Supplied AC adaptor) DC 42 V to 57 V (PoE+ power supply) |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Finish | [AW-HE40HWPJ9], [AW-HE40SWPJ9], [AW-HE40HWEJ9], [AW-HE40SWEJ9] Pearl white [AW-HE40HKPJ9], [AW-HE40SKPJ9], [AW-HE40HKEJ9], [AW-HE40SKEJ9] Metallic black |
| Allowable Humidity Ranges | 20 % to 90 % (no condensation) |
| Mass | Approx. 1.5 kg (3.30 lb) |
| Controller Supported*1 | AW-RP50, AW-RP120, AK-HRP200 |
| Input | Mic/line input Stereo mini-jack (ø3.5 mm) Input impedance: Approx. 2 kΩ (unbalanced) [Mic input] Supported microphones: Stereo mic (plug-in power, on/off switching via menu) Supplied voltage: 2.5 V ± 0.5 V Mic input level: –60 dBV ± 3 dBV [Line input] Input level: -10 dBV ± 3 dBV |
| Output | Video output HDMI: [AW-HE40HW/HK] HDMI connector * HDCP is not supported. * VIERA Link is not supported. HD SDI OUT: [AW-HE40SW/SK] Compliant with the SMPTE292M standards/75 Ω(BNC x 1) |
| Input/Output | Input/Output connector LAN: LAN connector for IP control (RJ-45) Equipped with straight/crossover cable auto detection function RS-232C: Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT) RS-422: CONTROL IN RS422A (RJ-45) USB: Mini-B port SD card: microSD card slot |
| Lens | Motorized 30x zoom, F1.6 to F4.7 [f=4.3 mm (11/64 inches) to 129 mm(5-5/64 inches); 35 mm (1-3/8 inches) equivalent: 31.6 mm (1-31/128 inches)to 962.0 mm (37-7/8 inches)] |
| Minimum Illumination | 59.94 Hz: 0.7 lx (50 IRE, F1.6, 48 dB,1/60 without accumulation) 0.35 lx (50 IRE, F1.6, 48 dB,1/30 with accumulation[Frame Mix 6 dB]) 50 Hz: 0.7 lx (50 IRE, F1.6, 48 dB,1/50 without accumulation) 0.35 lx (50 IRE, F1.6, 48 dB,1/25 with accumulation[Frame Mix 6 dB]) |
| Synchro Scan | 59.94 Hz : 59.94 Hz to 660.09 Hz 50 Hz : 50.00 Hz to 570.12 Hz |
| Horizontal Resolution | 1000 TV lines Typ (Center area) |
| White Balance | AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K) |
| Color Separation Optical System | On-chip color filter system |
| Focus | Switching between auto and manual |
| Focus Distance | Entire zooming range:1.2 m (3.94 ft) Wide end: 10 cm (0.33 ft) |
| Gamma | Off, Normal (Low, Mid, High), Cinema |
| Electronic Shutter Speed | During Full Auto:1/30 to 1/2000 [59.94 Hz], 1/25 to 1/2000 [50 Hz] During Auto: 1/60 to 1/2000 [59.94 Hz], 1/50 to 1/2000 [50 Hz] DuringManual:1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [59.94 Hz], 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [50 Hz] |
| Imaging Sensors | 1/2.3-type MOS |
| Gain Selection*2 | Auto, 0 dB to 48 dB (3 dB step) |
| Frame Mix*3 | Auto, Off, 6 dB, 12 dB, 18 dB, 24 dB |
| Recording Format | 1920 x 1080/59.94p, 1920 x 1080/50p, 1920 x 1080/29.97p, 1920 x 1080/25p, 1280 x 720/59.94p, 1280 x 720/50p, 1280 x 720/29.97p, 1280 x 720/25p |
| Frame Rate | max 30 fps (System frequency 59.94 Hz) max 25 fps (System frequency 50 Hz) |
| Audio Output | USB Audio Class Ver1.0 |
| Video Output | USB Video Class Ver1.0 |
| Resolution | 1920 x 1080, 1280 x 720, 640 x 360 |
| Output Format | HD 1080:59.94i/50i 1080:29.97p/25p 1080:29.97PsF/25PsF 720:59.94p/50p |
| Scene File | Full Auto, Manual1, Manual2, Manual3 |
| Synchronization System | Internal synchronization |
| Pan/Tilt Operation Speed | Maximum speed during preset: 300°/s Maximum speed during manual: 90°/s |
| Panning Range | ±175° |
| Quietness | During preset: NC40 or less During manual: NC35 or less |
| Tilting Range | –30° to 90°*5 |
| Chroma Amount Variability | ±3 step |
| System Frequency | 59.94 Hz/50 Hz |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*4 |
| Supported Models | Devices standardly equipped with a USB 2.0 compatible port |
| IP Connecting Cable | When connecting through a hub: LAN cable*6 (category 5 or above),max. 100 m (328 ft) When using a PoE+ hub: LAN cable*6 (category 5e or above),max. 100 m (328 ft) When a hub is not used: LAN cable*6 (category 5 or above),max. 100 m (328 ft) |
| AW Protocol Connecting Cable | LAN cable*6 (category 5 or above,straight cable), max. 1000 m (3280 ft) |
| Standard Protocol Connecting Cable | Mini DIN 8-pin cable, male |
| SD Card Type | micro SDHC (4 GB to 32 GB), micro SDXC (64 GB to 128 GB), Speed class 10 or higher |
| Video Compression Format (SD) | MPEG-4 AVC/H.264 High Profile |
| Audio Compression Format (SD) | AAC-LC (48 kHz, 16 bit, 2 ch, 128 kbps) |
| SD Card Recording | MPEG-4 AVC file standard compliant (.MP4) |
| Accessories | Supported protocol Mount bracket for installation surface (Hanging*7 / Desktop): 1 Drop-prevention wire (already attached to the unit): 1 Bracket mounting screws (bind-head) M4 x 10 mm: 4 Main unit mounting screw (with flat washer, spring washer) M3 x 6 mm: 1 Power cable (1.5 m [4.92 ft]): 1 AC adaptor: 1 CD-ROM: 1 |
| Supported Protocol | IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCPv6, DNS, NTP, ICMPv6(MLD), RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast |
| Note | * 1: It may be necessary to upgrade the version of the controller so that the controller will support the unit. * 2: During Auto, 6 dB to 48 dB (6 dB step) are available for AGC Max Gain setting. * 3: During Auto, 0 dB, 6 dB, 12 dB and 18 dB are available for Auto F.Mix Max Gain setting. * 4: To ensure safety, the unit must be secured using the mount bracket supplied. * 5: Depending on the pan or tilt position, the camera may be reflected in the image. * 6: Use of an STP (shielded twisted pair) cable is recommended. * 7: To ensure more safety, AW-HE40 series can be secured by using the direct ceiling mount bracket (WV-Q105A). |
| Resolution (Network) | JPEG: VGA (640 x 360), QVGA (320 x 180) max.30 fps 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 max.30 fps H.264: 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 max.60 fps |
| iOS, Android Support | JPEG image display |
