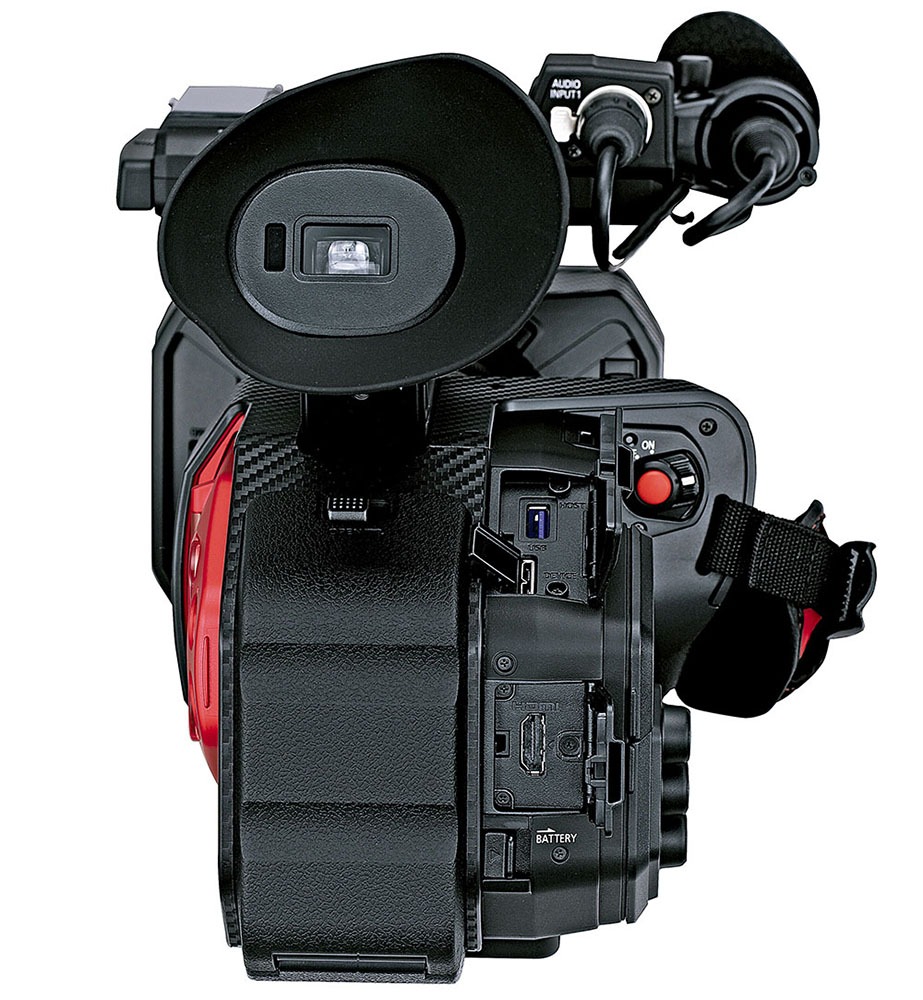

AG-DVX200-Rear-Low-res–2
AG-DVX200-Side-Right-Low-res-
AG-DVX200-Image-LCD-Low-res–2
AG-DVX200-Rear-Low-res–2

Panasonic AG-DVX200EJ8 Professional Handheld Camcorder 4K / HD with 4/3 large sensor

cx10-x2000-slant-2-low Panasonic AG-CX10ES Professional Digital 4K Video Camcorder
AG-UX180-Low-res-V1-1 Panasonic AG-UX180EJ8 4K Memory Card Camcorder

4 699,00 €

Panasonic AG-DVX200EJ8 Professional Handheld Camcorder 4K / HD with 4/3 large sensor

Saadavus: Saadaval järeltellimisel Tootekood: 5025232885657 Kategooria:
Add to Wishlist
Võrdle
  • Kirjeldus
  • Lisainfo

Kirjeldus

Panasonic AG-DVX200EJ8 Professional Handheld Camcorder 4K / HD with 4/3 large sensor
• Newly developed F2.8 LEICA DICOMAR 4K fixed lens with 13x zoom and 28mm wide angle
• True 4K (4096 x 2160) @24p, UHD up to 60p and Full HD capabilities
• Shallow depth of field with the large 4/3 sensor
• Sharp images even in 4K and in tough conditions thanks tot the fast & precise auto-focus and high def VF & LCD
• Run & Gun concept: a production camera that can be used just like an ENG camera: straight out of the bag
• 13x zoom and wide angle 28mm – 365.3mm (35mm film equivalent) in HD
• 12 stops of imager latitude faithfully recorded by new V-Log L gamma curve
• Variable Frame Rate with a maximum of 120 fps (in FHD resolution)
• IR shooting capability
• 5 axis Hybrid Image Stabilizer
• Intelligent Auto Focus, Custom Auto Focus
• ND filters (1/4, 1/16, 1/64)
• 3 rings for independent Zoom: Focus, Iris control, mechanical
• 4.3 type touch screen type LCD (Approx. 2.76 Mil dots)
• 0.39 type high quality OLED viewfinder (Approx. 1.77 Mil dots)
• Battery cover for great handheld shooting experience


Weight Approx. 2.7 kg (5.95 lb) (body only, excluding lens hood, battery, and accessories)
Approx. 3.1 kg (6.84 lb) (including lens hood, battery, and eye cup)
Power DC 7.2 V (when the battery is used)
DC 12 V (when the AC adaptor is used)
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Power Consumption 21.7 W
Operating Humidity 10 % RH to 80 % RH (no condensation)
Lens Optical image stabilizer lens, optical 13x motorized zoom
F2.8 to F4.5 (f=12.8 mm to 167 mm)
35 mm equivalent:
FHD: 28.0 mm to 365.3 mm
UHD 59.94p/50.00p: 37.2 mm to 485.1 mm
UHD 29.97p/25.00p: 30.6 mm to 398.7 mm
4K 24p: 29.5 mm to 384.9 mm
ND Filter OFF, 1/4, 1/16, 1/64
Shutter Speed When [SYSTEM MODE] = 59.94 Hz
• 60i/60p mode: 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec.,
1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec.,
1/1500 sec.,1/2000 sec.,1/3000 sec., 1/4000 sec.,1/8000 sec.
• 30p mode: 1/30 sec.,1/50 sec.,1/60 sec., 1/100 sec., 1/120 sec.,
1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec.,
1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec.,1/4000 sec.,
1/8000 sec.
• 24p mode: 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec.,
1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec.,
1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec.,
1/4000 sec., 1/8000 sec.
When [SYSTEM MODE] = 50.00 Hz
• 50i/50p mode: 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec.,
1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec.,
1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec.,
1/4000 sec., 1/8000 sec.
• 25p mode: 1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec.,
1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec.,
1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec.,
1/4000 sec., 1/8000 sec.
Slow Shutter Speed When [SYSTEM MODE] = 59.94 Hz
• 60i/60p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec.
• 30p mode: 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec.
• 24p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
When [SYSTEM MODE] = 50.00 Hz
• 50i/50p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec.
• 25p mode: 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
Recording Media SDHC memory card (4 GB to 32 GB),
SDXC memory card (48 GB to 128 GB), UHS-I supported
*An SD memory card with a capacity of UHS Speed Class 3 (U3)
is required to shoot videos with a bit rate of 100 Mbps or higher.
An SDXC memory card with a capacity of 64 GB or more and
UHS Speed Class 3 (U3) is required to shoot UHD 2160/59.94p/
50.00p videos with a bit rate of 150 Mbps or higher.
Recording Format When [Dual Codec] = FHD 50 Mbps
[Main Recorder] Recording mode = MOV/MP4
•UHD/29.97p/25.00p/23.98p 100 Mbps
[Sub Recorder] Recording mode = Same as the recording mode and the frame
rate of the main recorder
•FHD/29.97p/25.00p/23.98p 50Mbps
When [Dual Codec] = FHD 8 Mbps
[Main Recorder] Recording mode = MOV/MP4
•UHD/29.97p/25.00p/23.98p 100 Mbps
•FHD/59.94p/50.00p/29.97p/25.00p/23.98p 200 Mbps
•FHD/59.94p/50.00p 100 Mbps
[Sub Recorder] Recording mode = MOV
•FHD/59.94p/50.00p/29.97p/25.00p/23.98p 8 Mbps
HDMI Out HDMI x 1
(HDMI type A terminal, not compatible with VIERA Link)
Output format:
2160/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p,
1080/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p/59.94i/50.00i,
720/59.94p/50.00p, 480/59.94p, 576/50.00p
Effective Pixels FHD (1920 x 1080): 15.49 megapixel
UHD (3840 x 2160) 59.94p/50.00p: 8.71 megapixel
UHD (3840 x 2160) 29.97p/25p.00: 12.89 megapixel
4K (4096 x 2160) 24p: 13.35 megapixel
Filter Diameter 72 mm
Digital Zoom 2x/5x/10x, i.Zoom (1.0x to 1.54x, variable zoom)
Video Output BNC x 1, Composite 1.0 V [p-p], 75 Ω
Built-in Microphone Supports stereo microphone
Dimensions 181 mm (W) x 216 mm (H) x 374 mm (D)
(excluding protrusion and eye cup)
(7-1/8 inches x 8-1/2 inches x 14-23/32 inches)
Headroom 12 dB
Lens Hood Hood with lens cover
Sensitivity When [HIGH SENS.] mode
F11 (2,000 lx, 3,200 K, 89.9% reflect, 1080/59.94i)
F12 (2,000 lx, 3,200 K, 89.9% reflect, 1080/50i)
Recording Audio Signal 48 kHz/16 bit, 2 CH
Recording Video Signal 8 bit 4:2:0
Super Gain 30 dB and 36 dB switched
(when assigning [S.GAIN] to the USER button)
Recording Method MOV, MP4
Audio Compression Format LPCM (MOV/MP4) Dolby Digital (AVCHD)
Shortest Shooting Distance (M.O.D.) Approx. 1.0 m from the front lens
VFR Recording Frame Rate When [SYSTEM MODE] = 59.94 Hz
• 60p mode: 2, 15, 30, 40, 55, 58, 60, 62, 65, 75, 90, and 120 fps
• 30p mode: 2, 15, 26, 28, 30, 32, 34, 45, 60, 75, 90, and 120 fps
• 24p mode: 2, 12, 18, 20, 22, 24, 26, 28, 30, 36, 48, 60, 72, 84, 96, and 120 fps
When [SYSTEM MODE] = 50 Hz
• 50p mode: 2, 12, 25, 33, 45, 48, 50, 52, 55, 62, 75, 100, and 120 fps
• 25p mode: 2, 12, 21, 23, 25, 27, 30, 37, 50, 62, 75, 100, and 120 fps
Minimum Subject Illumination 0.2 lx (F2.8, gain 18 dB, [1/2 sec.], [HIGH SENS.] mode)
Recording Slot Slot x 2
System Format 59.94 Hz / 50 Hz
Gain Setting L/M/H selector switch
–6 dB to 24 dB (Adjustable in 1dB steps. Negative gain values are
available only when [EXPAND] is enabled, and the automatic
setting can be assigned to L/M/H.)
Synchro Scan Shutter When [SYSTEM MODE] = 59.94 Hz
• 60i/60p mode: 1/60.0 sec. to 1/249.8 sec.
• 30p mode: 1/30.0 sec. to 1/249.8 sec.
• 24p mode: 1/24.0 sec. to 1/249.6 sec.
When [SYSTEM MODE] = 50.00 Hz
• 50i/50p mode: 1/50.0 sec. to 1/250.0 sec.
• 25p mode: 1/25.0 sec. to 1/250.0 sec.
Pickup Devices 4/3-type MOS solid state image sensor
Color Temperature Setting ATW, ATW LOCK, Ach, Bch,
preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
Shutter Open Angle 5.0 deg to 180.0 deg to 360.0 deg
(in 0.5 deg steps, angle display)
IR Filter Incorporates the ON/OFF control function
Motion Picture Recording Recording Format: MOV, MP4, AVCHD
Recording Mode: *Please see the Video record mode table.
Still Picture Recording JPEG (DCF/Exif2.2) supported
8.8M: 4096 x 2160 (17:9), 8.3M: 3840 x 2160 (16:9),
2.1M: 1920 x 1080 (16:9), 0.2M: 640 x 360 (16:9),
0.3M: 640 x 480 (4:3)
Video Signal for External Output 8 bit 4:2:2/10 bit 4:2:2 (switchable menu)
*Output of UHD/59.94p/50.00p becomes 8 bit 4:2:0. When 10 bit
4:2:2 is selected, recording is not possible with the main unit.
Video Compression Format (Dual Codec) MPEG-4 AVC/H.264 High Profile
Audio Compression Format (Dual Codec) LPCM
Audio Input1/Audio Input2 XLR x 2, 3-pin
Input high impedance, LINE/MIC/MIC+48 V (switchable SW)
LINE: 4 dBu/0 dBu (switchable menu)
MIC: –40 dBu/–50 dBu/–60 dBu (menu)
Headphone 3.5 mm diameter stereo mini jack x 1
DC In DC 12 V (11.4 V to 12.6 V), EIAJ type 4
LCD Monitor 4.3 type HD color monitor, Approx. 2,760,000 dots
Speaker 20 mm diameter, round x 1
TC Preset In/Out BNC x 1,
Used as the input and output terminals
Input: 1.0 V to 4.0 V [p-p], 10 kΩ
Output: 2.0 V ±0.5 V [p-p], low impedance
Included Accessories Battery (VW-VBD58), Battery charger, AC adaptor, Shoulder strap, Microphone holder,
Screw for microphone holder (12 mm), AC cable x 2, Eye cup, Lens hood,
INPUT terminal cap, CD-ROM (operating instructions)
Audio Out 3.5 mm diameter stereo mini jack x 1, Output level: 600 Ω, 316 mV
Cam Remote 2.5 mm diameter super mini jack x1 (ZOOM, S/S)
3.5 mm diameter mini jack x1 (FOCUS, IRIS)
View Finder 0.39 type OLED (organic EL display)
Approx. 2,360,000 dots, video display area: approx. 1,770,000 dots
SDI Out (Audio Output) 2 CH (LPCM) switchable gain: 0 dB/–6 dB/–12 dB
HDMI Out (Audio Output) 2 CH (LPCM)
USB (Host) Type A connector, 9-pin, bus power supported
In Recording mode; USB2.0 compatible (5 V, 0.5 A)
In Playback mode; USB 3.0 compatible (5 V, 0.9 A), used for
external media device connection
*External media device with a capacity of 32 GB or below or a
capacity above 2 TB cannot be used
USB (Device) Micro-B connector, 10-pin, USB 3.0,
Mass storage function (read only)

Lisainfo

Brand

Panasonic
