SWIT Dual 9″ Full HD Rack LCD Monitor with IPS Panel
The Dual 9″ Full HD Rack LCD Monitor with IPS Panel from SWIT adopts two 9″ IPS (In-Plane Switching) LCD panels with Full HD resolution. It also features LED backlight, an 800:1 contrast ratio, and a horizontal and vertical viewing angle of 170°. It is overlaid with glass that protects the screens against scratches or cracks.
SWIT S-4914FS SDI/HDMI Wireless Transmission System
Broadcast-quality wireless transmission, including an S-4914T transmitter and an S-4914R receiver, employs WHDI (OFDM) technology to carry uncompressed 3G/HD/SD-SDI and HDMI signals wirelessly up to 700 meters away with less than 1ms of latency. The system is pure hardware, Plug & Play.
In Line of Sight, the S-4914FS wireless transmission system supports a distance of approximately 700 meters for uncompressed 3G/HD/SD-SDI and HDMI signal transmission, with a delay of less than 1 millisecond.
The S-4914FS wireless system operates in the 5.1-5.9GHz free band. The frequency band is user configurable and supports up to 4 simultaneous wireless channels in one location. The radio power is less than 63mW and do no harm to humans.
Wireless system, includes an S-4904T transmitter with WHDI (OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI wirelessly transmitted in 700 meters scale, and with less than 1ms latency. The system is pure hardware connection, plug and play build-up, which is widely used in on-site shooting and director monitoring.
Input and Output
The transmitter S-4904T supports:
1x 3G/HD/SD-SDI input
Approx. 700m Effective Distance
Uncompressed SDI/HDMI, less than 1ms latency
In Line of Sight, the S-4904 wireless transmission system support approx. 700 meters effective transmission distance of uncompressed 3G/HD/SD-SDI and HDMI signal, and the latency is less than 1 millisecond.
Embedded Audio Transmission
The S-4904 supports SDI and HDMI embedded audio (ch-1 & ch-2) transmission.
5.1-5.9GHz Operation Frequency
The S-4904 wireless system runs at 5.1-5.9GHz License-free operation frequency. The frequency bands are user configurable and support at most 4 wireless channels in one location.
The radio power is less than 63mW and will not do harm to human bodies.
You can set several S-4904R receivers at the same frequency bands as the 1 S-4904T transmitter to enable the multicast mode.
Power Supply and Installation S-4904T is equipped with V-mount or Gold mount plates, to be easily fixed on cameras and attached with batteries.
batteries. Can also be powered via the 5.5/2.1mm pole DC in socket of 6.5-17V input.
Professional WHDI (MIMO/OFDM) technology
Uncompressed 3G/HD-SDI and HDMI wireless
2-ch SDI/HDMI embedded audio transmission
700 meters (LOS) transmission distance
Less than 1ms latency
5.1-5.9GHz license-free operation frequency
User configurable frequency bands
Multicast – 1 transmitter to multi receivers
Less than 63mW radio power
AES 256bit encryption
V-mount / Gold Mount connections
All-metal housing, durable
Pure hardware connection; Plug and Play 4904

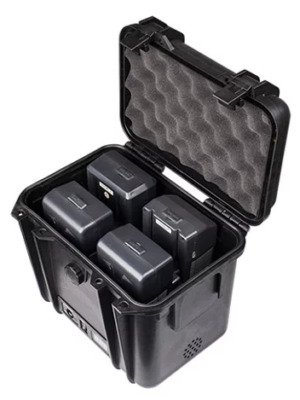

PP+ Fiber glass case, strong and durable
Install 4 x V-mount batteries
Dual 24V 3-pin XLR DC output
LED panel to display real-time voltage and low voltage warning
Charging without take out batteries by provided 4-pin XLR DC charging socket
Intelligent protective circuit design, safe and reliable
S-4990 is a WHDI wireless receiver with high Gain panel antenna for Broadcast/Film application. The panel receiver works with SWIT S-4904 / S-4914 transmitters, and will extend wireless transmission distance to 1000 meters. With the panel receiver, the video transmission will get more stable and reliable. The panel receiver is easy to set up and robust for field using.
The Blackmagic Pocket UltraScope is a compact, portable version of the PCI-card UltraScope, and is designed specifically for location shoots using a USB 3.0-compatible laptop. Including the same great tools as the UltraScope, this miniature pod automatically detects an SD, HD, or 3Gbps SDI signal and converts it to USB 3.0. Designed for editors and colorists, the unit draws its power from your computer via a USB 3.0 port and is designed to provide the technical accuracy required for use in broadcast and engineering video work.
Swit S-4904PSS (S-4904PSS) SDI/HDMI Wireless System – Transmitter and Panel Receiver Set (V-Mount)
WHDI wireless transmission
1000 meters (LOS) with Panel Receiver
S-4904P Broadcast/Film industry wireless system is based on WHDI wireless technology, 5.1-5.9GHz license free bands, with a new developed high Gain Panel Receiver, supports uncompressed 3G/HD/SD-SDI and HDMI to transmit 1000 meters (Line-of-Sight) distance, and less than 1 millisecond latency. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, Steadicam etc.
The Transmitter has 2 omni antennas, signal interfaces are:
1x 3G/HD/SD-SDI input
1x HDMI 1.3 input
(If both SDI and HDMI are connected, the system transmits SDI as priority.)
1x 6-17V DC input
The Panel Receiver adopts 14dBi high Gain Panel Antenna and build-in wireless receiver design, to set up by lighting tripod.
The Panel Receiver interfaces are:
1x 3G/HD/SD-SDI output
1x 7-36V 4pin LEMO DC input
In Line-of-Sight, S-4904P supports non-compressed 3G/HD/SD-SDI and HDMI 1000 meters (3300 feet) transmission, with less than 1 millisecond latency.
Embedded Audio Transmission
S-4904P supports SDI and HDMI embedded audio (CH1&2) transmission.
S-4904P wireless system works at 5.1-5.9GHz License-free frequency. The frequency bands are user configurable and support 3-4 pairs wireless channels to work together in one location.
The wireless output power is less than 63mW, which will not do harm to human bodies.
Users can set several Receivers at the same frequency point as the Transmitter, to enable 1 Transmitter to multi Receivers multicast mode.
Power Supply and Set-up
Transmitter: Equipped with V-mount or Gold mount battery plates, so you can install the transmitter between camera and battery, and to power the transmitter and camera together. You can also power the transmitter via 5.5/2.1mm pole tap DC-IN, input voltage 6.5-17V.
Receiver: Provides VESA bracket to set up on lighting tripod, and power via 4-pin LEMO DC-IN, 7-36V. The package also provides V-mount or Gold mount battery plate with clamp, to install battery on lighting tripod.
SWIT – LA-WR8 Tx/Rx Pocket Wireless DMX controller
LA-WR8 is a portable wireless DMX controller for field light kit application, compatible with all standard DMX512 protocol lights, to get rid of complex DMX cable work and large DMX console, and makes the field light kit control easier and quicker.
